JI-ICM-RGB
Chromaticity measurement, Absolute Brightness measurement, Relative Absolute Brightness measurement.

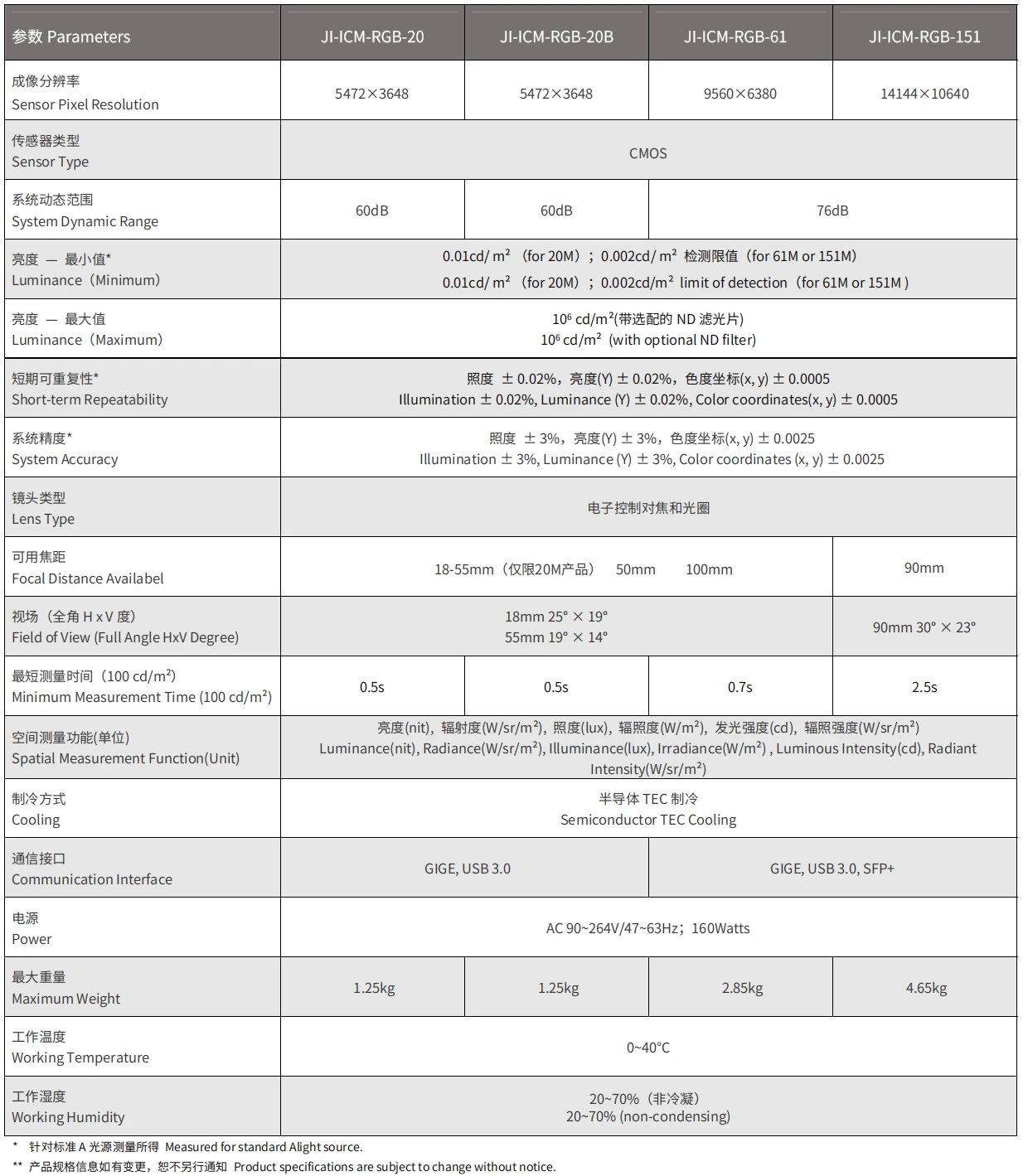

1. Product Type: JI-ICM-RGB Imaging Colorimeter Series

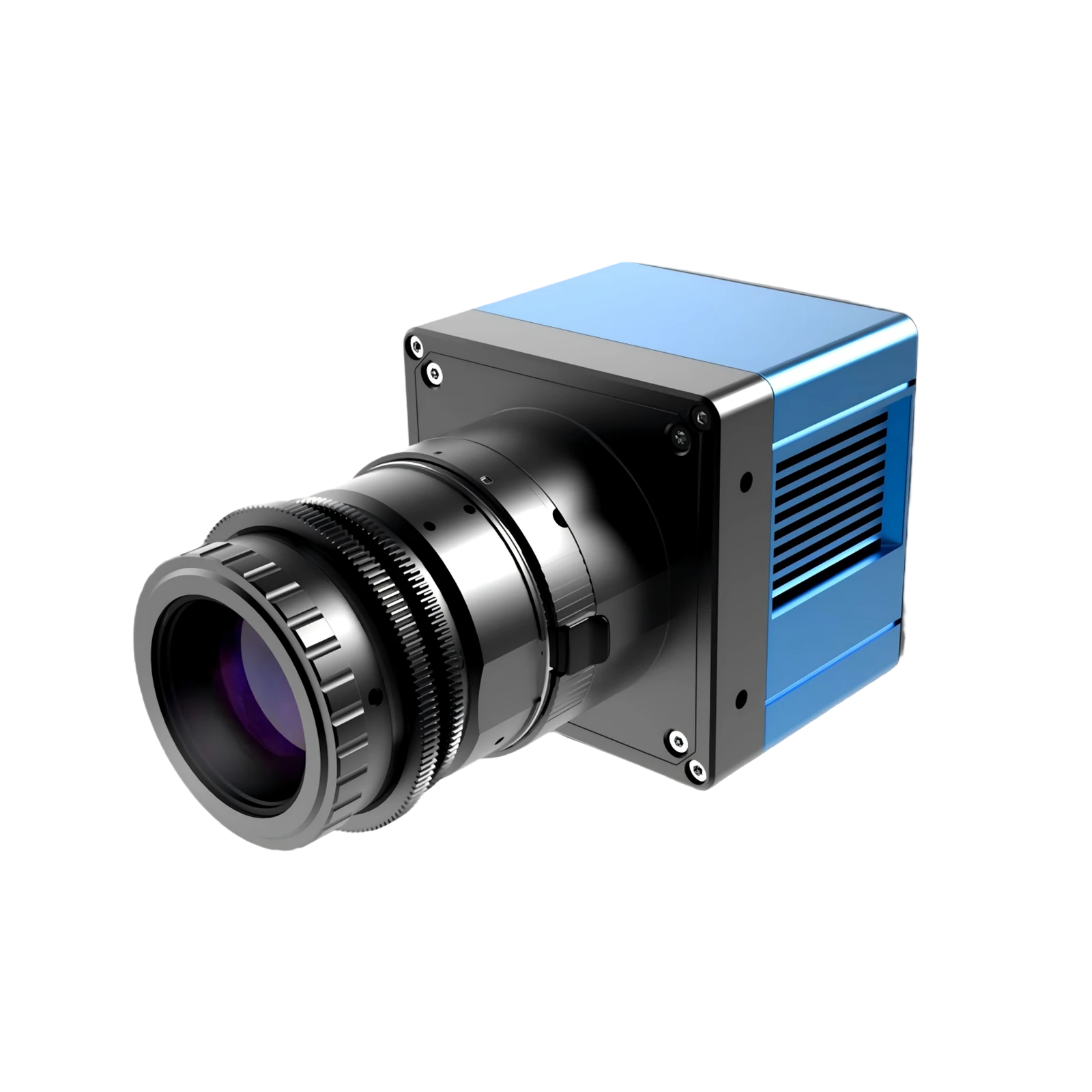

2. Product Figure
3. Product Function Description: For absolute brightness and color measurement of backlight modules such as FPD modules(LCD/0LED/PDP, etc., diffusion plates, light guide plates, evaluation of brightness uniformity, evaluation of source uniformity for screen lighting, and evaluation of short-term change in light source.
4. Main Function: Chromaticity measurement, Absolute Brightness measurement, Relative Absolute Brightness measurement.
1. High-speed measurement
By optimizing the measurement method, we can perform high-speed measurement of the uniformity of the emission surface. While confirming the quality condition of the emission surface, we can also conduct rapid measurements to reduce production costs.
2. Support for arbitrarily shaped measurement
Be able to set measurement areas of arbitrary shapes such as polygons, rectangles, circles, etc., and flexibly configure to respond to various types of illuminated panels.
3.Self-calibration
By adding a self-calibration module, self-calibration can be achieved and the operating cost can be reduced.
4.Intelligent hardware architecture
architecture of FPGA+GPU is adopted, which can work independently of Poand realize the integration of intelligent graph fetching and processing. At the same time. the matching software can speed up the measurement setup and simplify the operation, and automatically match the appropriate uniform field calibration to ensure accurate measurement results.
5.High precision measurement
Optimized for speed, resolution, and measurement accuracy, Using the image uniformity calibration technology of JingCe electronic intellectual property, the pixel-level measurement results, brightness and chroma can be accurately feedback, and high-precision chroma and luminance measurement can be realized.
1.Supports arbitrarily configuring up to 1200 measurement points on the screen and saving arbitrary configuration point information. it can measure different products based on customer-defined calibration modes.
2.Capable of displaying and transforming pseudo-color images in three dimensions, and supports adjusting the angle on the live view screen for real-time display.
3.Internally adopting a high-speed data bus with a rate 20 times faster than the GIGE interface effectively reduces images transmission time.
